Product Details
Product Description

Molybdenum plates include plates, sheets, blocks, strips and foils, among which plates are divided into thick plates and thin plates. Generally, plates with a thickness greater than 3MM are defined as thick plates, plates and sheets with a thickness ranging from 0.4 to 3MM are defined as thin plates, and products with a thickness of less than 0.4MM are defined as foil materials.

Because molybdenum plates have excellent high temperature resistance, corrosion resistance, high strength, high hardness and other properties, they are widely used in national defense, aerospace, glass fiber and other industries.

Molybdenum plate has very good thermal conductivity and does not react much with thermal expansion and contraction during use. Its good electrical conductivity has become an important material in the electronic and power equipment manufacturing industry. Of course, it is also used very well in some other industries. . Because molybdenum plates can withstand high temperatures of 2,900 degrees in vacuum, they are currently the most widely used thermal conductive material in the spacecraft industry.

Product Name High Quality 99.95% Molybdenum Foil Mo Strip Used in Chemical Industry
Material Pure Molybdenum and Molybdenum Alloy, Mo1, Mo2
Standard ASTM B386
Melting Point 2610℃
Boiling Point 4615℃
Density 10.2g/cm3

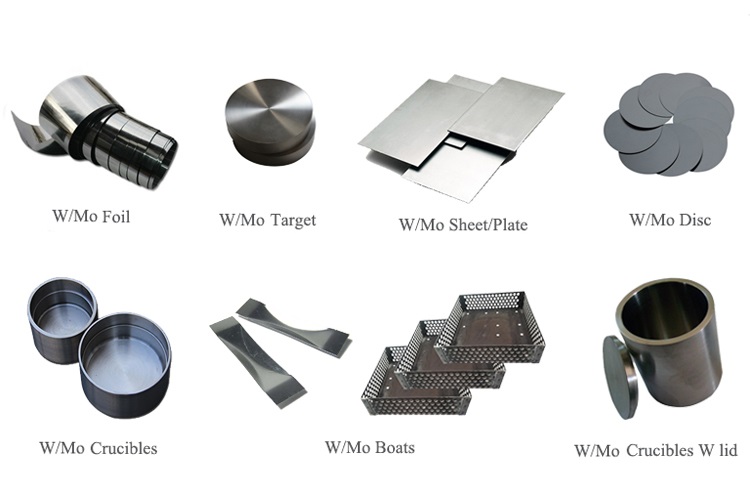

Shape Foil, strip, sheet, plate, disk, block, round disc
Surface Polished, bright, Shining, cold rolling
Delivery Time 3-15days
Application 1. Molybdenum Foil is used for making electric light source parts, components of electric vacuum and electric power semiconductor.
2. It is also used for producing molybdenum boats, heat shield and heat bodies in high temperature furnace.
3. It is widely used in furnace construction mould and parts, electronic components manufacturing and semiconductor industry. In vacuum furnace and high temperature furnace and heat preservation material plate electrode, etc.

Product name Thickness Width Length
Molybdenum foil(99.95%min.) 0.025-0.009 150 10000
0.1 350 1500
0.13 400 1500
0.15 420 1500
0.2 450 2000
Chemical Composition (%)


Fe Ni Si Al P Mg C O Ni Mn
0.0025 0.0021 0.0006 0.0008 0.001 0.0002 0.0016 0.108 0.0021 0.0002
Pb Sb Cr Ca Bi Cd Sn N V La
0.0001 0.0001 0.0008 0.0007 0.0001 0.0001 0.0001 0.0034 0.0001 0.4
